Why Double-sided Eutectic Technology Is the Ultimate Game-Changer for LED Headlight Bulbs?

1. Demystifying Eutectic Technology: The "Zero-Glue" Revolution

To understand the magic of Double-sided Eutectic Technology, we first need to look at how conventional LED headlights are made.

In a standard LED bulb, the semiconductor chips are attached to the copper or ceramic substrate using conductive organic adhesives, commonly known as thermal glue or silver paste. While cheap to manufacture, these adhesives are the weak link in high-power automotive applications. Organic glue acts as a thermal bottleneck, degrading and cracking over time under intense heat and continuous vehicle vibrations, eventually leading to rapid dimming or catastrophic chip failure.

The Eutectic Difference

Eutectic bonding completely eliminates thermal glue from the equation. Instead, it utilizes a sophisticated metallurgical process. Highly specialized alloy layers (typically Gold-Tin, AuSn) are placed between the LED chip and the substrate. Under precisely controlled high temperatures and pressure, these metals melt and fuse together seamlessly.

The result? A pure, void-free metal-to-metal (Metal-to-Metal) molecular bond.

2. Why "Double-Sided" Matters for Your Driving Safety

Achieving a eutectic bond on a flat surface is impressive, but automotive headlights require a 360-degree light output to mimic original factory halogen filaments. To achieve this, LED chips must be mounted on both the front and back sides of a razor-thin central circuit board.

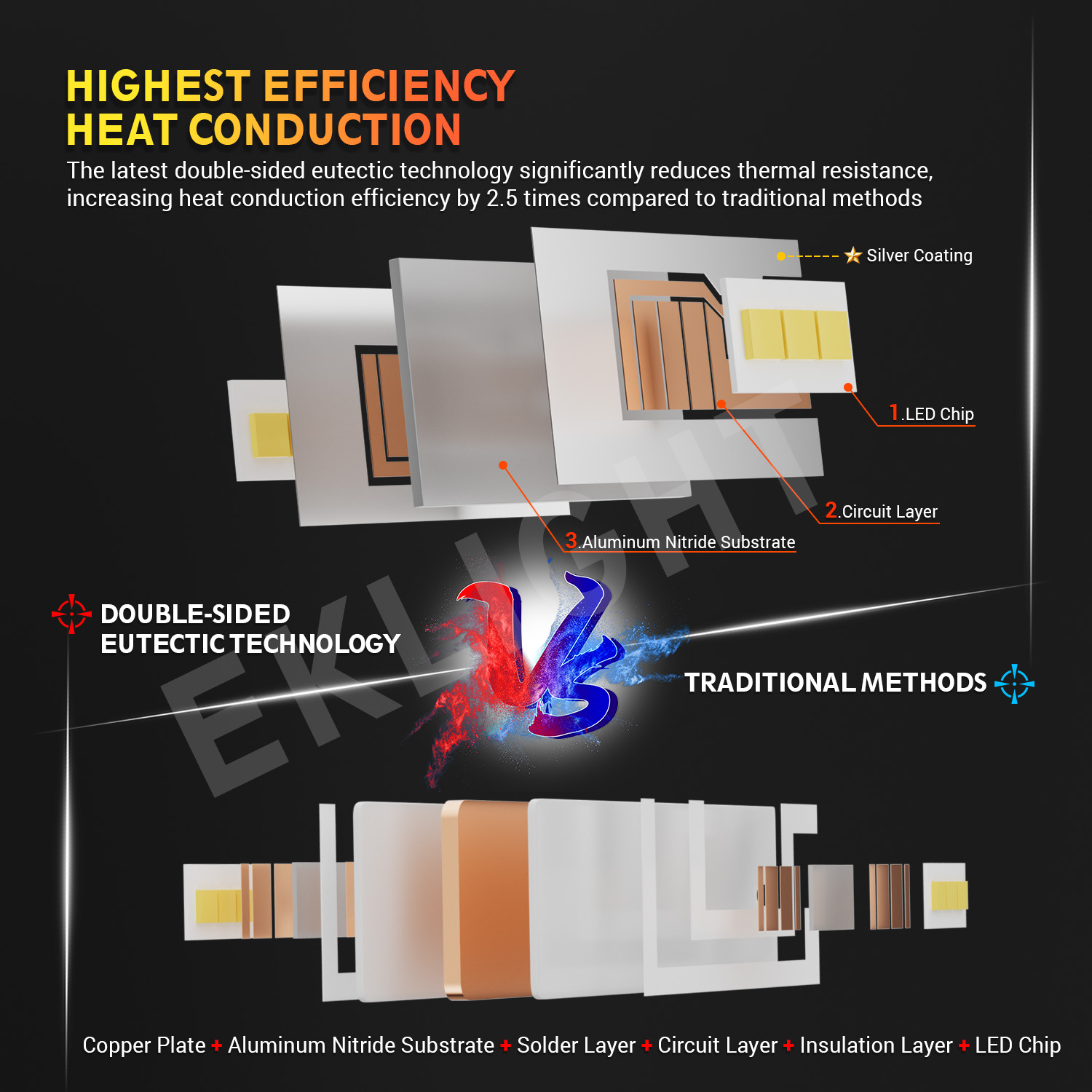

Double-sided eutectic technology means this ultra-challenging alloy fusion is perfectly executed on both faces of the purple copper substrate. This engineering breakthrough yields two massive benefits on the road:

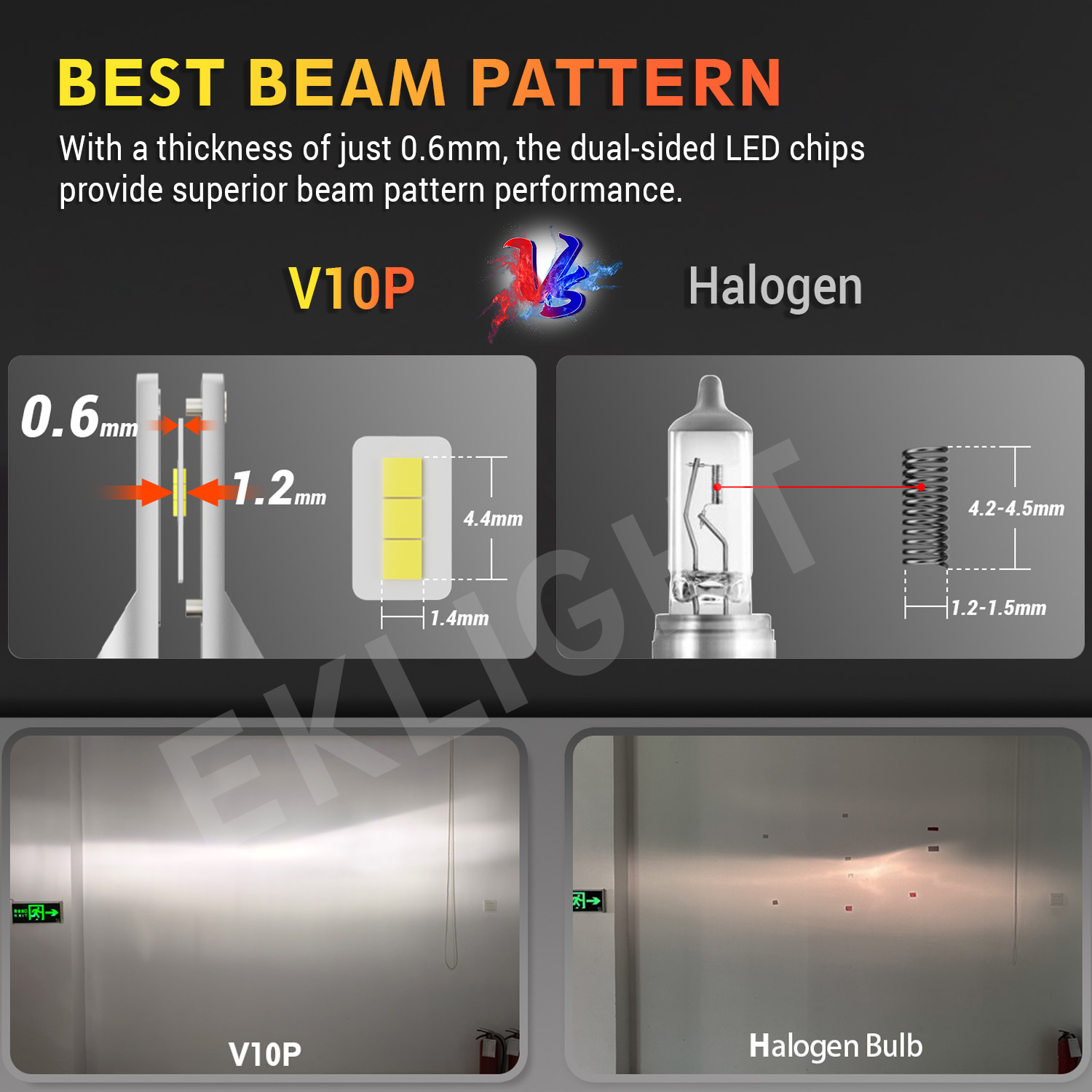

Ultra-Thin Substrate = Perfect Beam Pattern

Because the alloy eutectic layers are microscopically thin compared to thick globs of thermal glue, the overall thickness of the bulb core can be dramatically reduced. This minimizes the "dark spot" between the two sides of the bulb.

When installed in your vehicle's reflector or projector housing, a double-sided eutectic LED accurately mimics a factory halogen filament. You get an incredibly sharp cutoff line (no blinding oncoming traffic), maximized center hot-spot brightness, and flawless, wide road coverage.

Lowest Possible Thermal Resistance

Heat is the number one enemy of LED performance. When an LED chip gets too hot, its efficiency drops, causing a phenomenon known as lumen depreciation (the light dims significantly after 15 to 20 minutes of driving).

By bonding the chips directly to the copper core via metal alloys on both sides, heat is drawn away from the delicate semiconductor junctions at lightning speed,which ensures your headlights maintain their true, stable wattage and peak brightness even during grueling, hours-long night drives.

3. The Core Advantages: Why Upgrade to Double-Sided Eutectic LEDs?

• Zero Thermal Glue Degradation: Without adhesive paste to dry out or crack, your headlights maintain a stable thermal path, significantly extending their operational lifespan.

• True, Continuous High Wattage: Excellent heat dissipation allows the bulbs to run safely at stable wattages without risking chip burnout.

• Extreme Weather and Vibration Resistance: The molecular alloy bond has an exceptionally high melting point and immense mechanical strength. Whether you are driving through sub-zero winter blizzards or bouncing down corrugated off-road trails, the chips remain permanently locked in place.

• Maximum Safety & Compliance: A perfect beam pattern means you see hazards sooner without scattering dangerous glare into the eyes of other drivers.

Frequently Asked Questions (FAQ)

Q1: Is double-sided eutectic tech better than standard LED bulbs?

A: Yes, significantly. Standard LED bulbs use thermal glue to attach the chips, which acts as a heat bottleneck and degrades over time. Double-sided eutectic bulbs feature a direct alloy weld, providing superior heat dissipation, a thinner bulb profile for better light optics, and much higher durability.

Q2: Will these bulbs cause dashboard error codes (CANBUS issues)?

A: The eutectic process handles the chip attachment and physical cooling. To avoid dashboard warnings, ensure you choose a headlight kit equipped with a Smart Programmed CANBUS Decoder, which works alongside the premium chip technology to bypass sensitive vehicle computer checks seamlessly.

Q3: Why does my headlight dim after driving for a while?

A: This is caused by poor thermal management. When low-end LED bulbs overheat, their internal circuitry automatically reduces power to prevent the chips from burning out. Upgrading to a double-sided eutectic LED prevents this heat buildup, allowing your lights to maintain constant, uncompromised brightness throughout your trip.
