Why Choose the EK-V7S Plug-and-Play LED Headlight Bulb Over High-Core Alternatives?

1. The Optical Truth: 3-Core Custom Chips vs. 9, 12, or 15-Core Bulbs

When upgrading headlights, more LED cores do not equal better light output. To understand why the EK-V7S outpaces high-core competitors, we must look at how headlight reflectors and projector lenses are designed.

Why Multi-Core (9/12/15-Core) Bulbs Fail

Halogen housings are calibrated to reflect light from a tiny, precise central filament. When an LED bulb crams 9, 12, or 15 chip cores onto a single board:

• The light emitting surface (LES) becomes too large, shifting light outside the reflector's focal point.

• Light scatters haphazardly, creating dark spots on the road and blinding oncoming traffic with intense glare.

• The beam loses its punch, throwing light uselessly into the sky instead of down the road where you need it.

The EK-V7S 3-Core Advantage

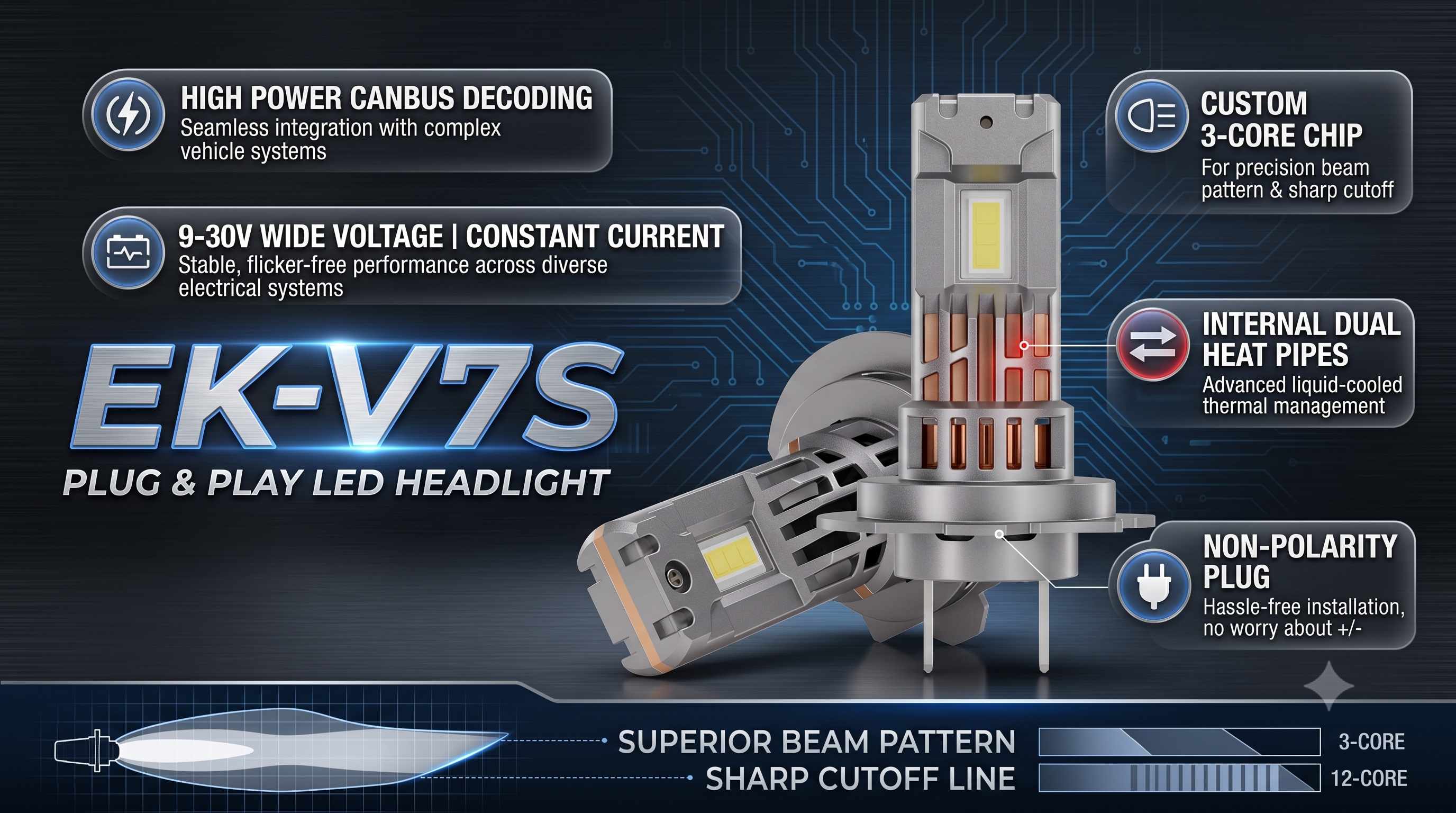

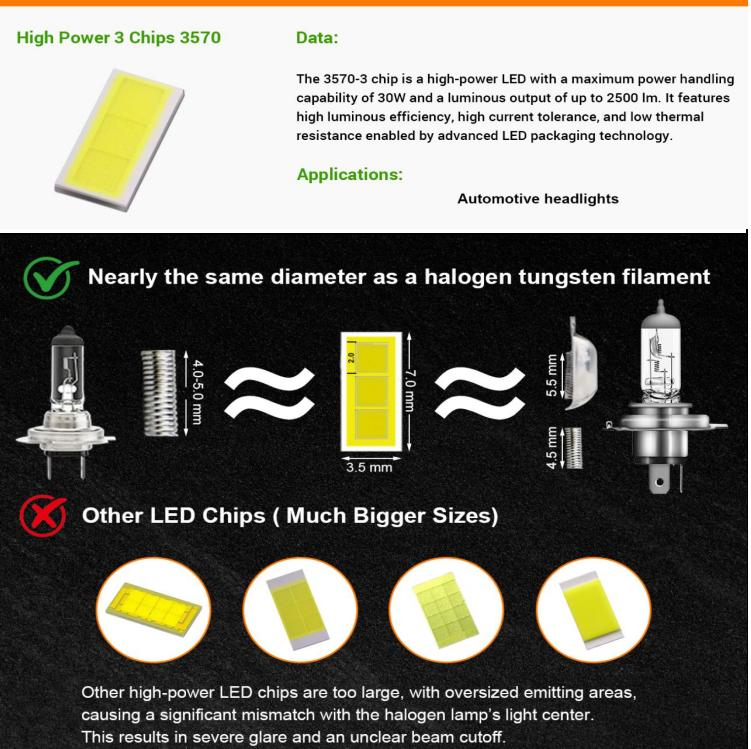

The EK-V7S utilizes a customized 3-core high-power LED chip engineered to mirror the exact length and position of an OEM halogen filament.

• Razor-Sharp Cutoff Line: Keeps light focused lower on the road to prevent blinding oncoming drivers while staying fully street-legal in pattern geometry.

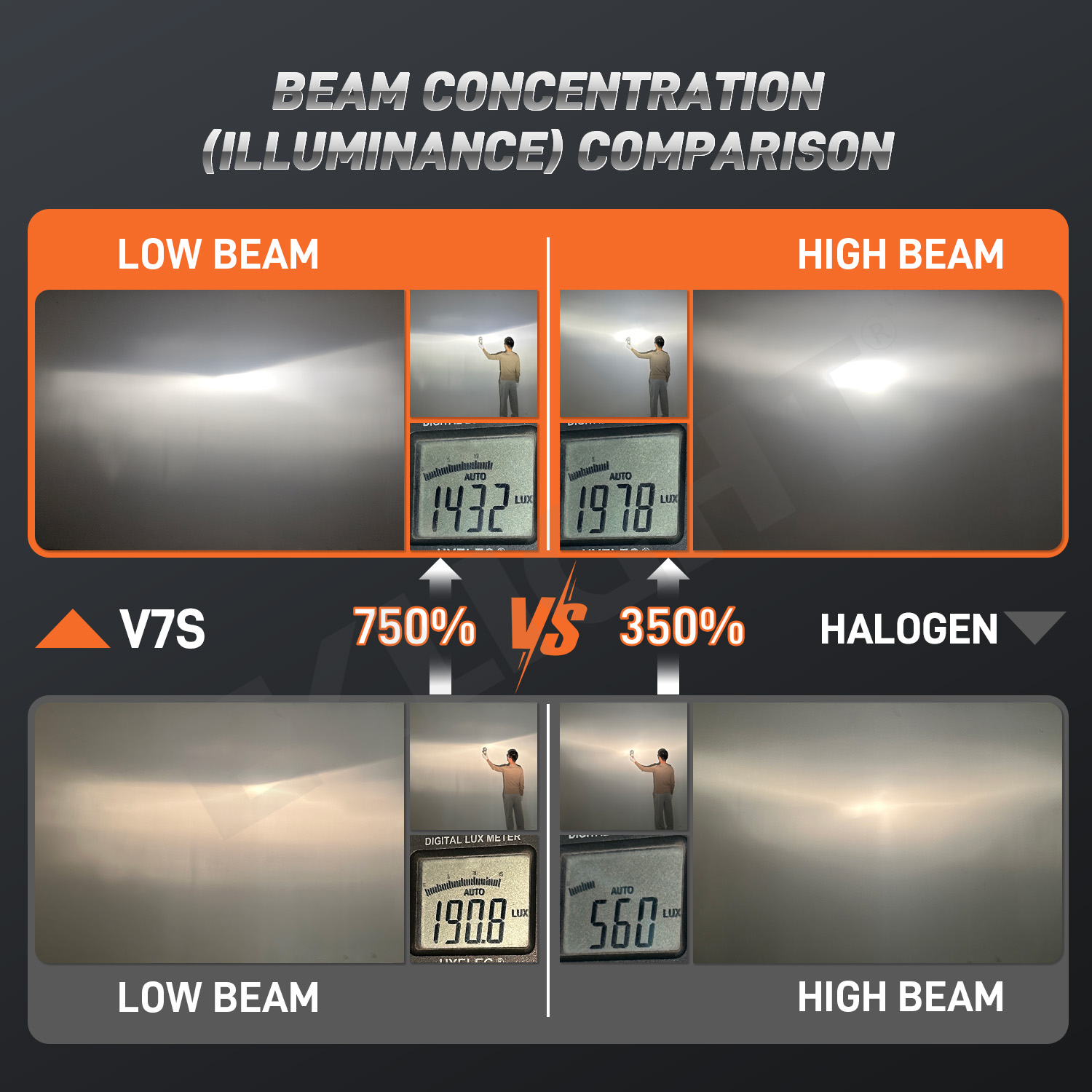

• Concentrated Center Hotspot: Throws bright, usable light further down dark highways for extended reaction time.

• Zero Dark Spots: Delivers edge-to-edge illumination across both lanes.

•

• 2. Advanced Dual Copper Heat Pipe Thermal Management

  High power generates severe heat. Without efficient cooling, high-output LED chips experience thermal decay—a rapid drop in brightness—and premature driver failure.

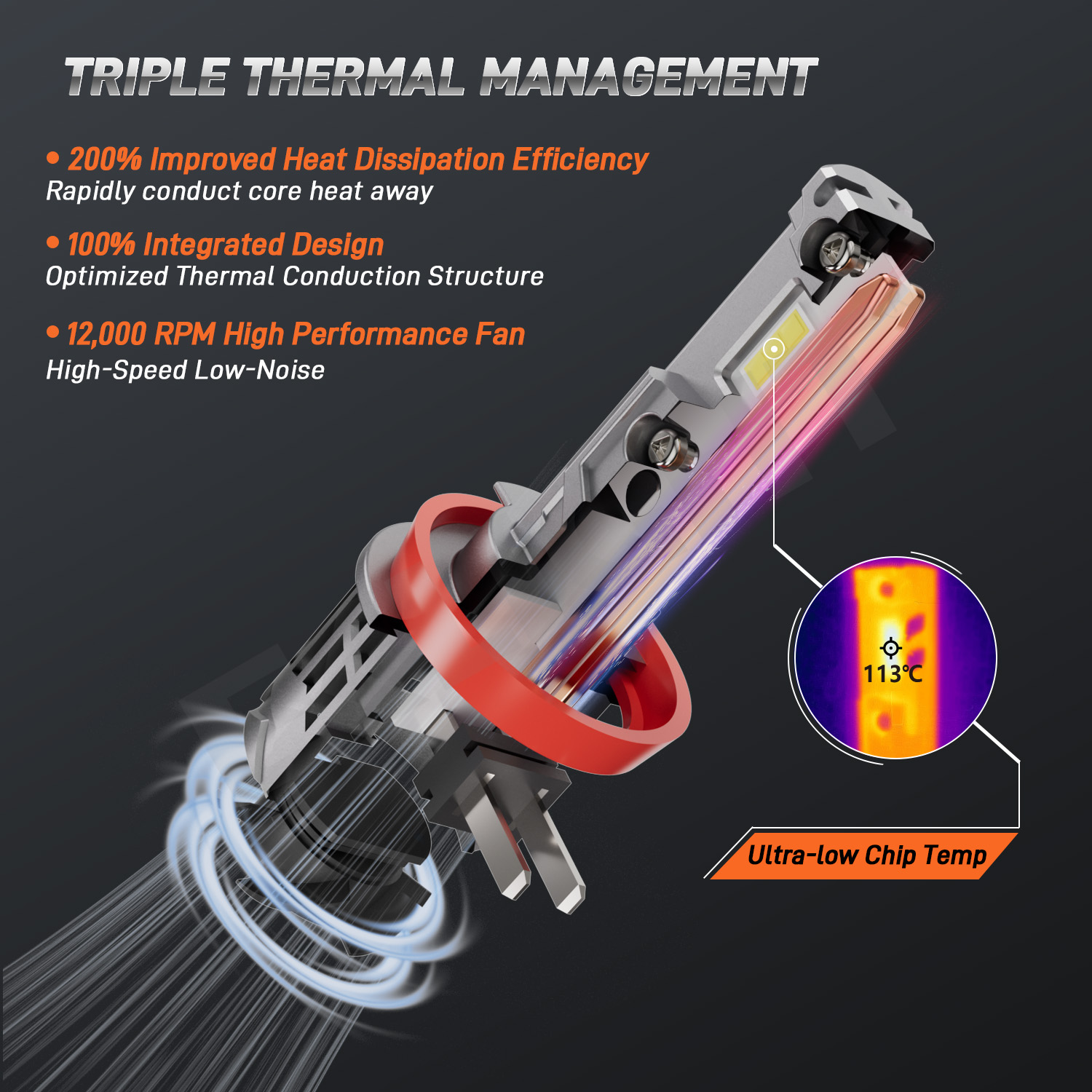

  Traditional plug-and-play LED bulbs rely on basic aluminum heatsinks or small single copper plates. The EK-V7S features a Dual Liquid-Cooled Copper Heat Pipe System integrated directly into the core substrate.

•

• 200% Faster Heat Extraction: Dual copper tubes utilize internal liquid-phase change technology to draw heat away from the 3-core chip in milliseconds.

• Sustained Lumen Output: Prevents thermal throttling, allowing your lights to maintain peak brightness during long night drives.

• 50,000+ Hour Lifespan: By keeping internal junction temperatures well below critical thresholds, the EK-V7S protects delicate circuit components for years of trouble-free operation.

• 3. True 1:1 Plug-and-Play Design with Built-in CANbus Decoder

  Installing an LED upgrade shouldn't feel like a masterclass in electrical engineering. Many aftermarket LEDs require bulky external driver boxes, wire harness slicing, or anti-flicker adapters.

•

• Built-in CANbus Decoder: The EK-V7S features an integrated smart driver chip designed to resolve dashboard error messages, radio interference, and bulb-out flickering on over 99% of modern vehicle computer systems.

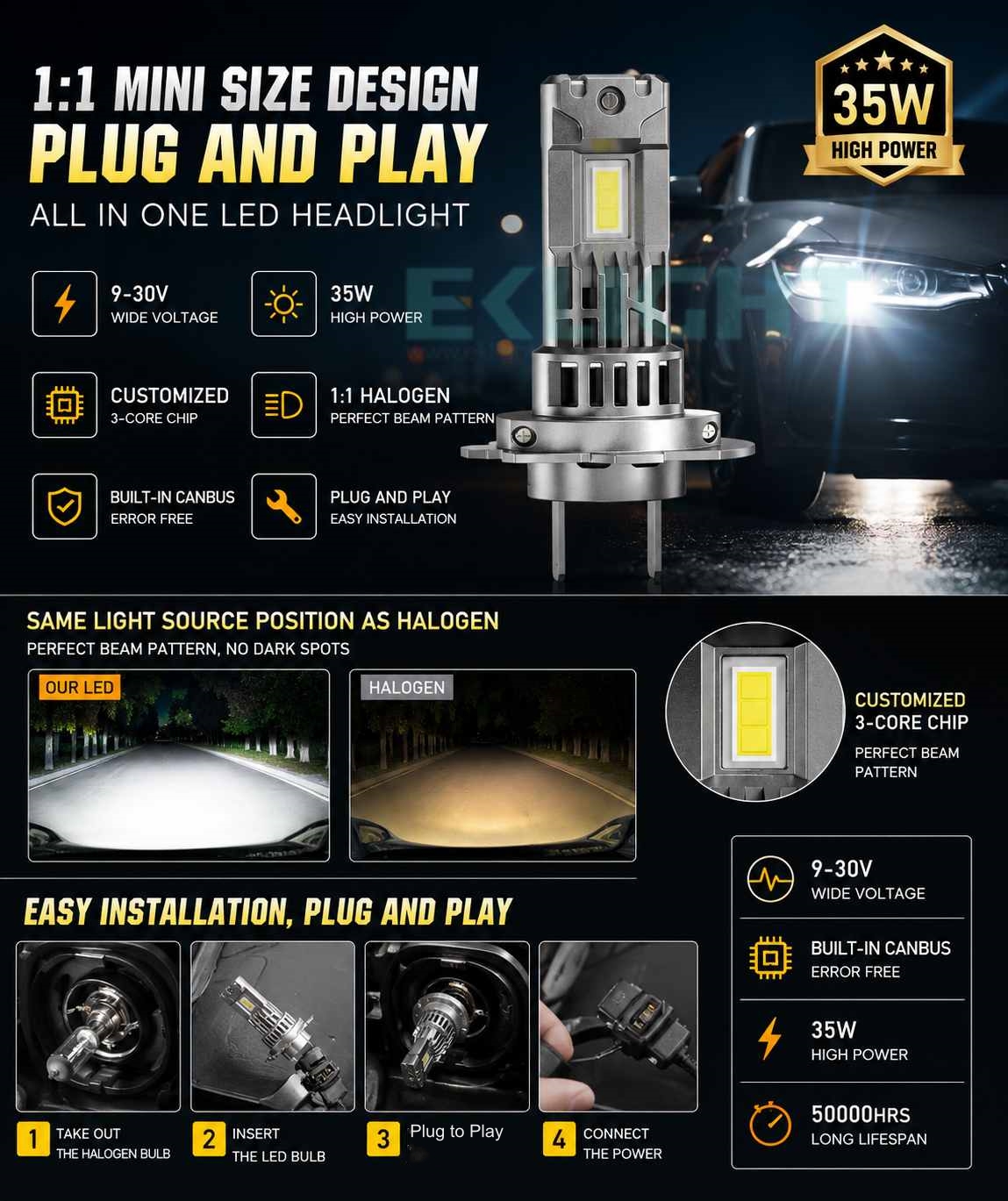

• True 1:1 Halogen Form Factor: The compact collar and short base profile fit seamlessly into small headlight housings, allowing factory dust covers to snap shut cleanly without modifications.

• Non-Polarity Plug: Simply plug it in—no need to flip connectors or guess electrical orientation.

Technical Specifications Comparison

FAQ

Q1: Why is a 3-core LED chip better than a 12-core or 15-core LED chip?

A: In automotive optics, precision matters far more than the number of LED chips. A 12-core or 15-core chip creates a light source that is physically too wide for your vehicle's reflector or projector lens. This results in scattered light, glare, and poor down-road illumination. The EK-V7S customized 3-core chip replicates the exact size of a halogen filament, ensuring a focused beam pattern with a sharp cutoff line.

Q2: Will the EK-V7S fit my vehicle without replacing dust covers?

A: Yes. The EK-V7S is designed with a 1:1 compact body profile. It installs directly into your factory headlight housing, allowing you to seal your original dust caps to protect against moisture and debris.

Q3: Why are dual copper heat pipes important in LED bulbs?

A: LEDs generate intense heat at their core junction. Dual copper heat pipes transfer heat away from the LED chips up to twice as fast as standard aluminum heatsinks, preventing thermal degradation and ensuring long-term brightness and reliability.

Q4: Will I get dashboard error codes or bulb flickering after installation?

A: The EK-V7S comes equipped with an upgraded, built-in CANbus decoder designed to match the electrical requirements of modern vehicles, eliminating flickering and dashboard warning lights on over 99% of models.
