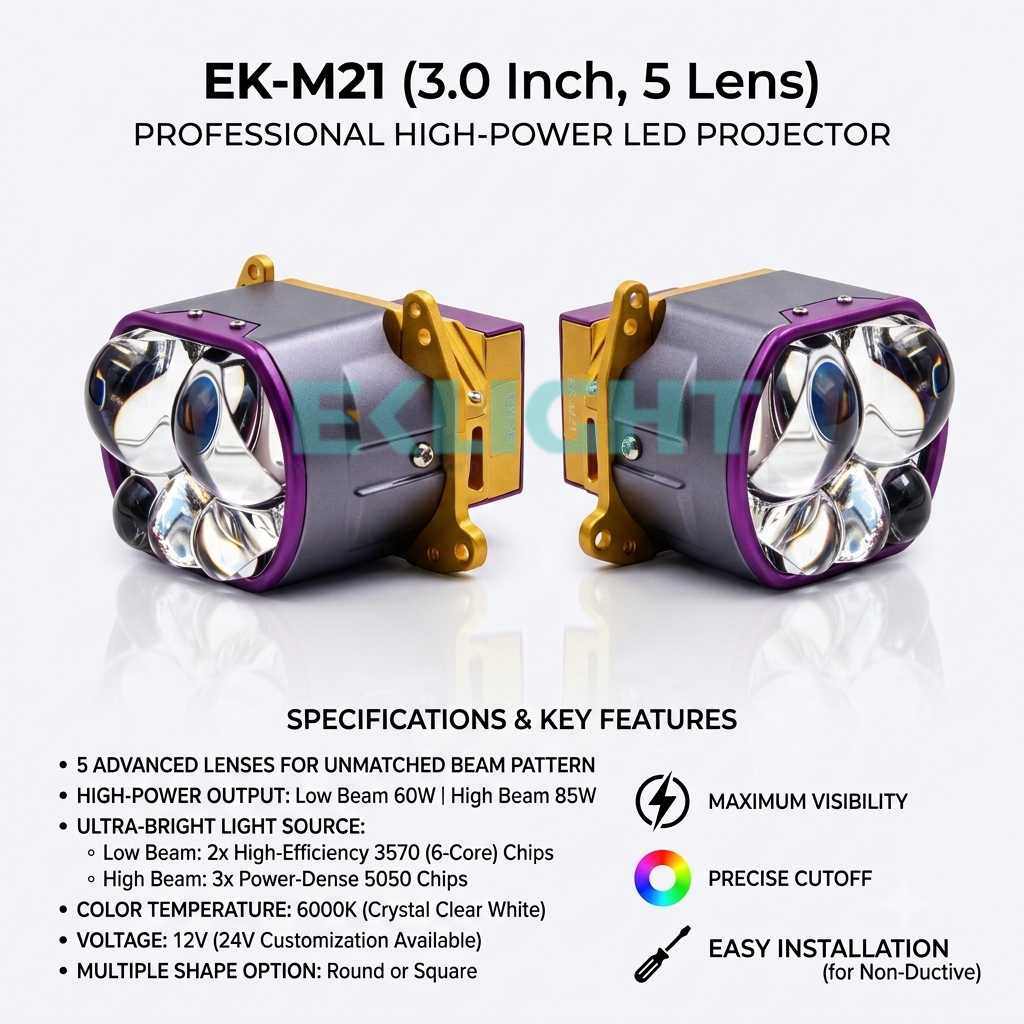

EK21 3.0-Inch Bi-LED Projector Lens — 60W/85W High-Power

EK21 3.0-Inch Five-Lens LED Projector Headlight — 60W/85W High-Power For Upgrading Your Lighting

【KEY SELLING POINTS】

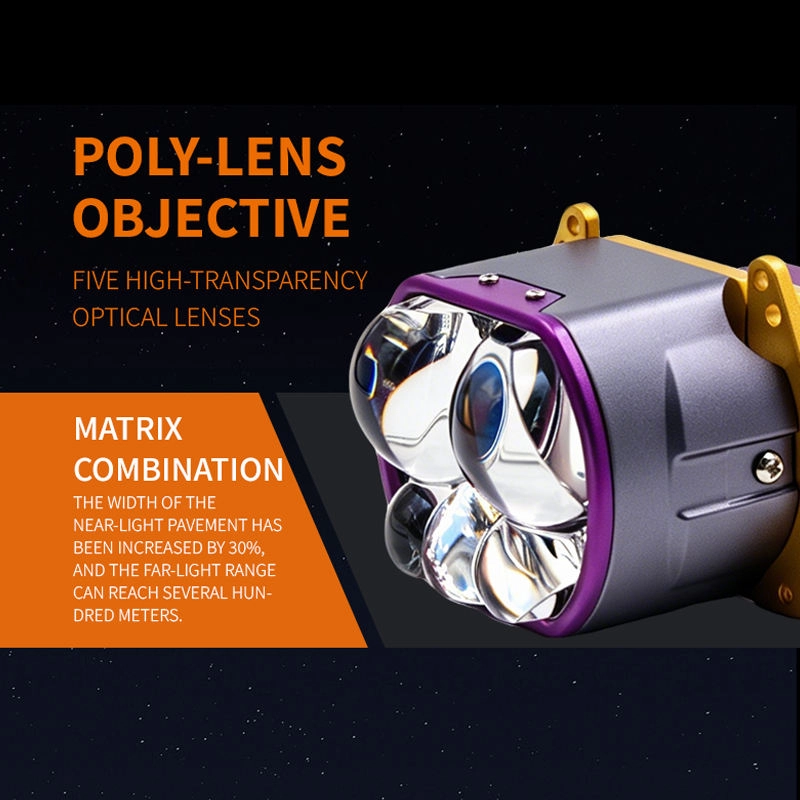

1. Revolutionary 5-Lens Matrix Optical Layout

Unlike traditional single-lens projectors, the EK21 utilizes an innovative Five Projector Lenses configuration. This multi-lens array independently manages and focuses individual light beams, creating an ultra-wide hotspot, flawless peripheral illumination, and an unprecedented depth of field down the road.

2. Next-Gen Chip Technology (3570 + 5050)

Engineered for ultimate light density and output consistency, the EK21 integrates a hybrid 3570 + 5050 high-power LED chip architecture. The 3570 chips deliver a flawless, high-intensity low beam, while the 5050 auxiliary chips kick in during high-beam mode to blast an intense, centralized beam that punches through extreme darkness and harsh weather.

3. High-Output Performance: 60W Low / 85W High Beam

Experience massive illumination upgrades over standard factory LEDs or HID systems. With a stable 60W Low Beam and an astonishing 85W High Beam, the EK21 provides immediate, zero-latency light output. It maximizes lumen efficacy without causing oncoming drivers glare, thanks to its perfectly engineered optical cut-off.

4. Dual Installation Versatility: Non-Invasive & Custom Retrofit

We understand that different vehicles have different retrofitting needs. The EK21 is available in two distinct structural versions:

• Non-Invasive Version (Plug & Play): Features a threaded shaft design for easy, lock-nut installation in standard H4/H7/9005/9006 reflector housings without cutting the headlight bowl.

• Custom Modification Version: Tailored for professional retrofitters utilizing standard bracket mounts for seamless integration into complex headlight assemblies.

5. 24V Heavy-Duty Customization Available

Built standard for 12V passenger vehicles, the EK21’s robust driver architecture can be custom-ordered for 24V applications. This makes it the ultimate heavy-duty lighting solution for long-haul trucks, commercial fleets, and off-road industrial vehicles operating in demanding environments.

6. 6000K Crisp Diamond White

The 6000K color temperature delivers a clean, modern diamond-white beam that mirrors natural daylight. It significantly reduces eye fatigue during long night drives and maximizes contrast against road obstacles, signs, and lane markings.

【TECHNICAL SPECIFICATIONS】

WHY CHOOSE EK21?

• Unmatched Beam Width: The 5-lens matrix eliminates dark spots on the road sides, making cornering at night significantly safer.

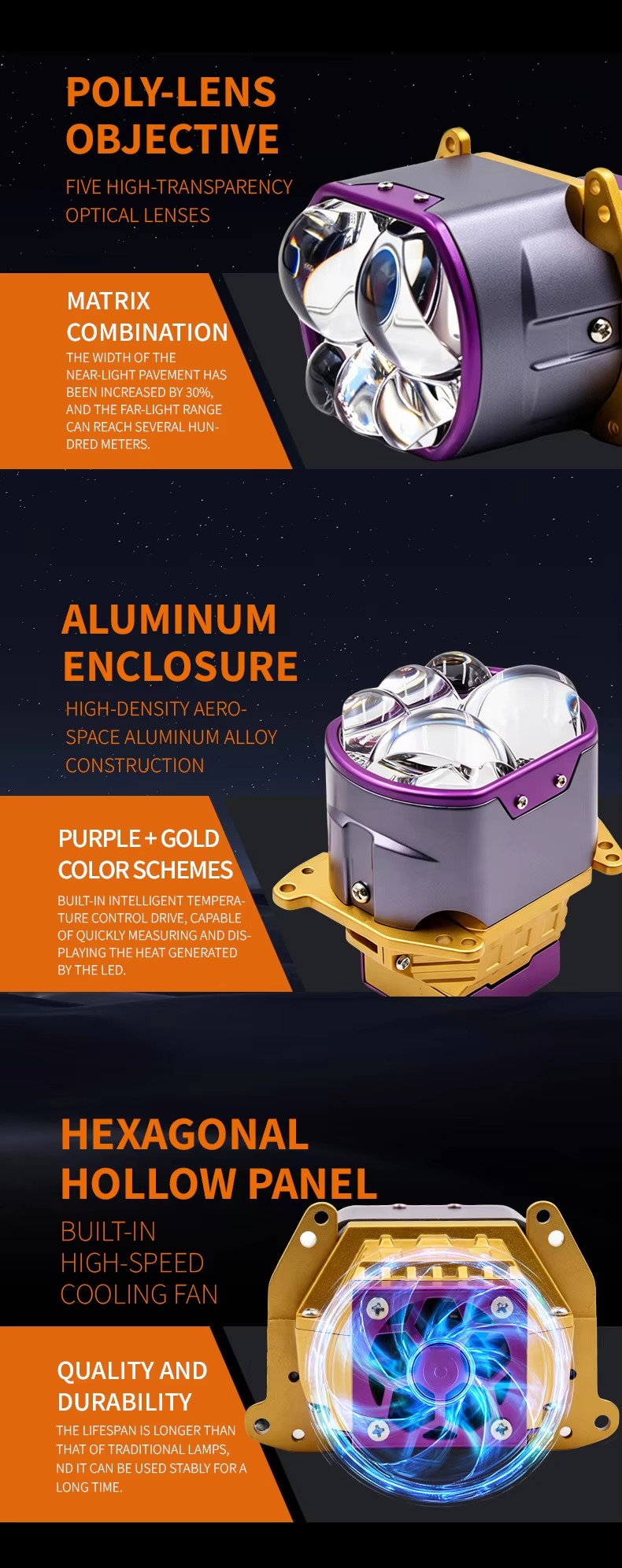

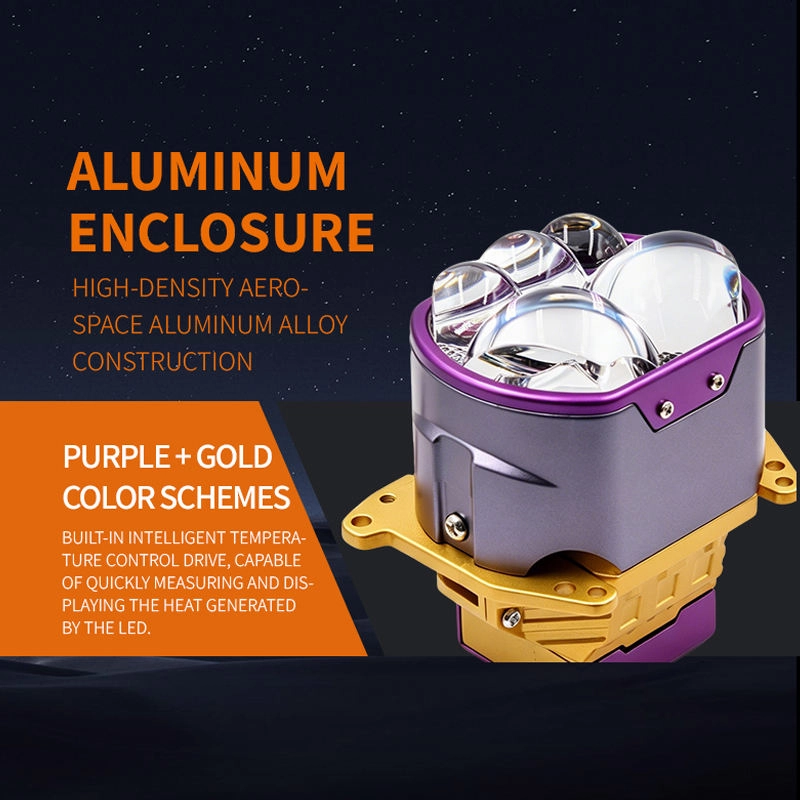

• Thermodynamic Efficiency: Built with high-grade aviation aluminum and active fan cooling to prevent thermal saturation, ensuring the 85W output remains stable throughout the entire drive.

• Perfect for Global Markets: Flexible installation options and 24V adaptability make it highly versatile for wholesalers, distributors, and global retail buyers alike.

Are you ready to try? Contact our sales-Team!
