EK-G5 Ultimate CANBUS Super Decoder & Anti-Flicker Harness for LED Headlights

Are standard LED decoders failing on your premium or sensitive vehicles? Many modern European and American vehicle computers (OBC) send rapid, microscopic electrical pulse signals to check bulb integrity. Standard resistors or simple decoders cannot trick these advanced monitoring networks, leading to continuous dashboard errors, flickering, or complete lighting shutdowns.

The EK-G5 Super Decoder is built specifically for these "impossible-to-decode" vehicle profiles. By perfectly simulating the complex electrical characteristics and analog feedback loops of original halogen bulbs, the G5 passes OEM pulse inspections with a 99.9% success rate. It is the ultimate heavy-duty fix for persistent LED headlight compatibility issues.

Key Features & Technological Advantages

1. Flawless Halogen Impedance Simulation (Advanced Dual-Loop)

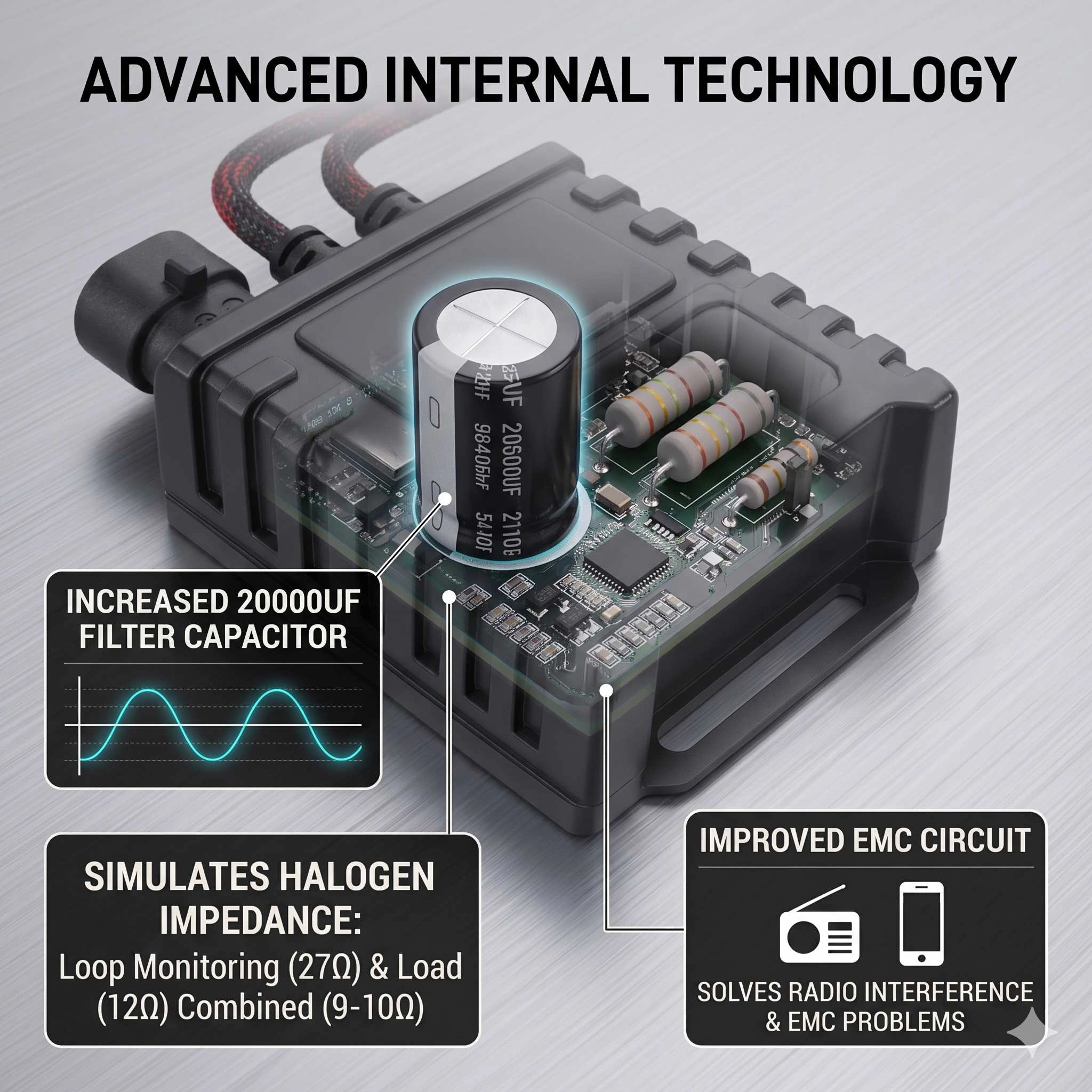

Unlike generic resistors that guess the required load, the G5 uses precise analog hardware engineering. It incorporates a 27-ohm loop monitoring resistance and a 12-ohm loading resistor. When both circuits combine seamlessly, they generate a total real-world impedance of 9–10 ohms. This exact electrical match closely mimics a hot halogen bulb filament, satisfying strict vehicle feedback loops.

2. Passes OEM Computer Pulse Signal Inspections

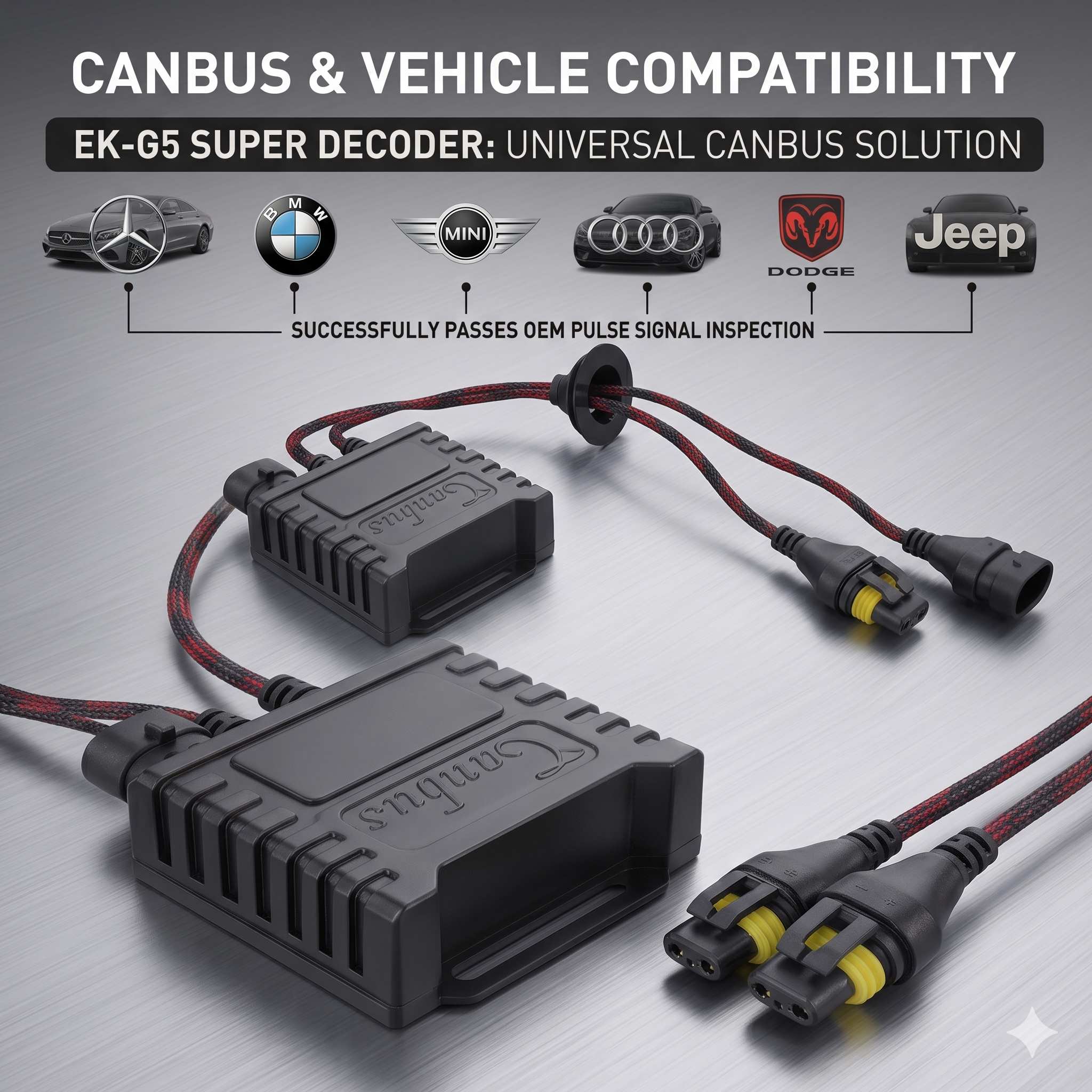

The internal smart circuitry is specifically tuned to intercept and successfully answer the rapid automated polling pulses sent by highly sensitive onboard computers. It is field-tested and fully proven to eliminate error codes on notoriously difficult platforms including Mercedes-Benz, BMW, MINI, Audi, Dodge, JEEP, Chrysler, and more.

3. Industrial-Grade 20,000µF Energy Filtering & Storage

Equipped with a high-capacity 20,000µF electrolytic filter capacitor, the G5 provides heavy-duty power stabilization. It heavily smooths out inconsistent alternating currents (AC) and pulse-width modulation (PWM) power waves from the vehicle alternator, ensuring a flawless, flicker-free, and perfectly stable DC output to your LED headlight bulbs.

4. Cool-Running Heat Management (<80°C)

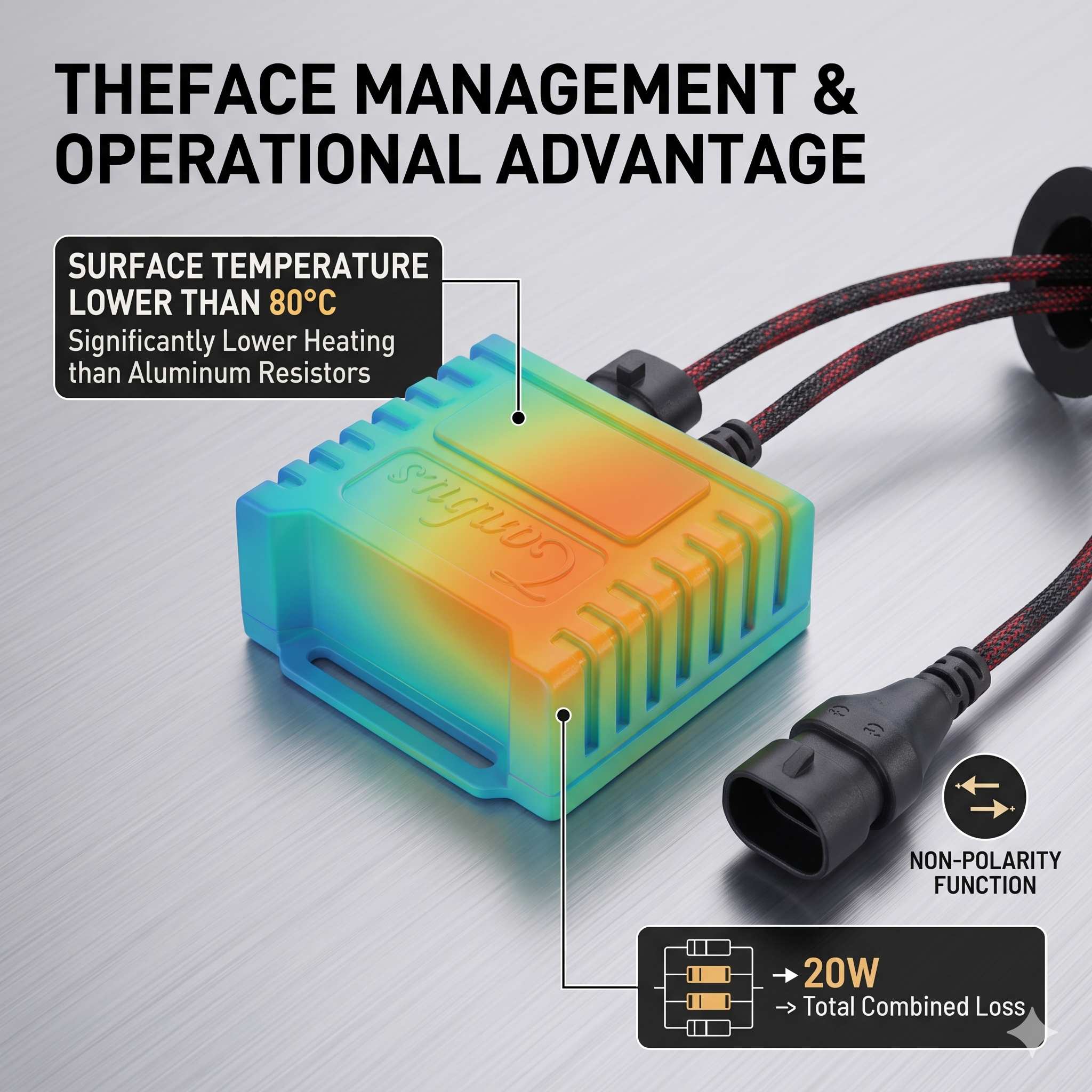

Traditional gold aluminum housing resistors are notorious for reaching dangerous, scorching temperatures (often exceeding 150°C–200°C), risking damage to nearby plastic components or wiring. Thanks to optimized circuit distribution and an advanced structural shell, the EK-G5 surface temperature remains strictly under 80°C (176°F) for unmatched under-hood safety.

5. Enhanced Heavy-Duty EMC Shielding

Upgraded Electromagnetic Compatibility (EMC) filtering structures are integrated right into the control box. This suppresses stray radio frequency interference (RFI) and electromagnetic fields, completely eliminating static buzzing on your FM/AM radio, dashboard cameras, or sensitive vehicle audio networks.

6. Smart Non-Polarity Functionality

Never worry about reverse polarity pins during installation again. The EK-G5 features built-in automated polarity correction. No matter which way your factory harness plugs in, the decoder routes power correctly, reducing installation troubleshooting time down to zero.

Dynamic Power Compatibility

• Loading Resistor Loss Rate: 12W

• Total Combined Loss Rate Power: 20W

• LED Headlight Bulb Compatibility: Optimally matches and operates flawlessly with LED headlight bulbs rated between 10W and 40W of power.

Technical Specifications

• Model: EK-G5 Super Decoder

• Voltage: 9-16V
  Current: 0.6A/13.5V (G5 dual system canbus decoder), 1A/13.5V (Loading resistor),1.6A/13.5V after both
  combined.
  Power: 8W/13.5V (G5 dual system canbus decoder), 12WA/13.5V (Loading resistor), 20W/13.5V after both
  combined.
  Impedance: 27Ω (G5 dual system canbus decoder), 12Ω (Loading resistor), 9Ωafter both combined
  Working temperature: -40°—+85°
  G5 capacitor: 20000UF

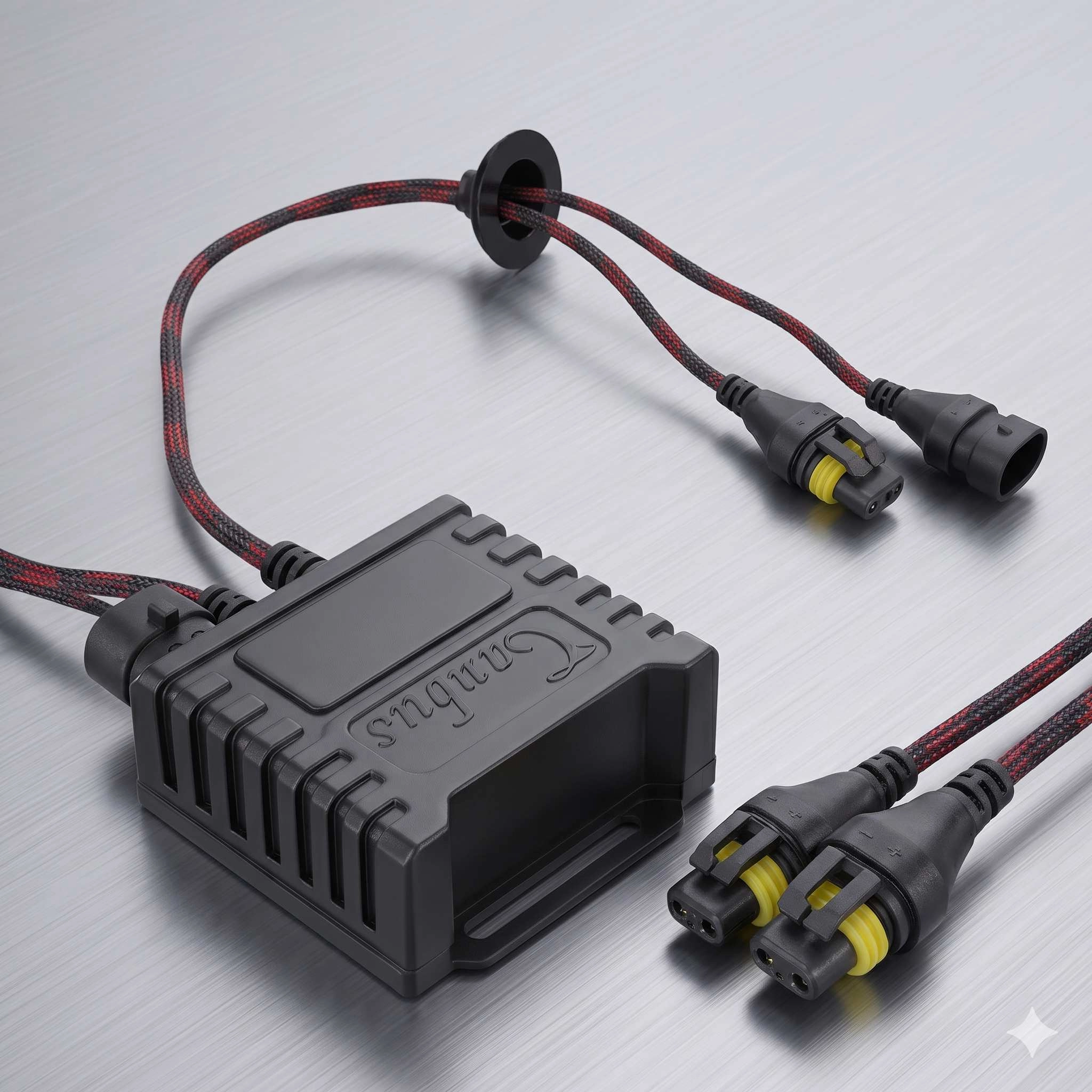

• Plug Profile: Heavy-duty braided sleeve extension wiring with weather-sealed rubber grommets.

• Partner with Us for Factory-Direct Bulk Sourcing

  For B2B Wholesalers, Professional Auto-Shops, and Importers:

  Tired of customer returns caused by weak, generic decoders? Offer your market the most reliable, heavy-duty problem solver available. As a direct automotive lighting manufacturer, we support your business growth with:

  • Aggressive Tiered B2B Wholesale Pricing directly from our production lines.

  • OEM/ODM Customization Capabilities (Custom plug profiles, custom branding, and specialized packaging).

  • Guaranteed Batch Consistency backed by international automotive QC standards.

  Facing a Difficult Vehicle Application Challenge?

  Automotive CANBUS networks evolve every year. If you are dealing with a sensitive vehicle fleet or want to confirm the exact electrical profiles for your market demographics, contact our engineering sales department today!
